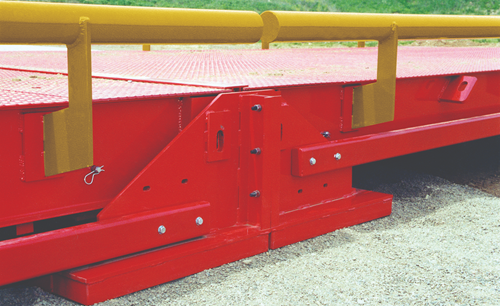

SURVIVOR ATV Portable Truck Scale

​Description

  • Bolt-on backfill ramp bulkheads, removable for concrete approaches

  • End cleanout

  • Pre-suspended load cells and mounts

  • Open bottom design

  • Longitudinal I-beam construction

  • Integrated load cell pockets

  • Bolted down, top access to load cells and junction box

  • Self-seating, P-bracket connection between modules

  • G-Force mount assemblies return the scale to center without check rods or bumper bolts

  • Cables completely encased in rodent-proof conduit

  • Shipping mode

  • Thorough finishing process includes cleaning of steel before and after welding, followed by either high solids urethane liquid paint or durable powder paint

​

Options

  • 20 lb division

  • 20 ft steel ramps

  • 10 ft steel approaches

  • 50 lb division/400,000 lb capacity

  • 1-inch deck plate upgrade

  • Schedule 40 guiderails

  • Schedule 80 guiderails

  • Stainless steel load cells

  • Dolly down plates

  • Galvanized weighbridge and suspension hardware

  • Corrosion-resistant coating

  • 3/8-inch runners

  • Catwalks

  • Landing with stairs

  • iQUBE2® digital diagnostic junction box bundles

Approvals

Some approval documents are available to view by clicking the icons below.

ntep_logo
updated_mc_logo
logo_nom
Warning: Cancer and Reproductive Harm

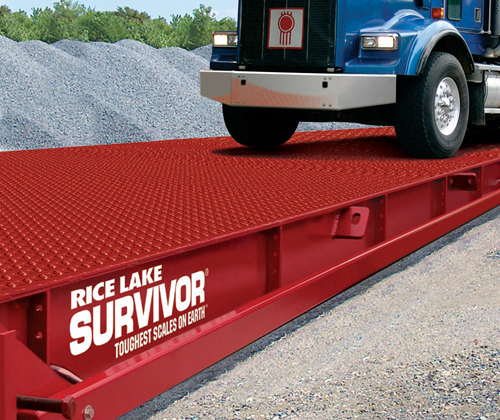

Portable Truck Scale

​

The SURVIVOR ATV truck scale brings heavy-capacity weighing to temporary sites. Easy to set up, expand and transport, this NTEP-certified durable truck scale has a gross capacity of 270,000 pounds. Top access to load cells and the junction box allows simple maintenance and inspection, plus all cables are completely encased in conduit to eliminate rodent damage. The SURVIVOR truck scale design features an open bottom to eliminate moisture buildup, along with wide-flange I-beams to minimize deflection and prolong weighbridge life.
