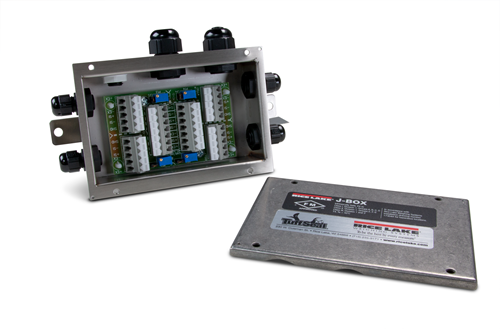

JB4ES TuffSeal Excitation Trim Junction Box

Description

  • Jumpers to enable/disable a load cell

  • PreVent™ breather vent

  • Conformal-coated circuit board

  • Connect two, three or four single load cells

  • Expansion port

​

Applications

  • Floor, tank, hopper scales

Approvals

Some approval documents are available to view by clicking the icons below.


​

​

The JB4ES TuffSeal® excitation trim junction box sums two or four single load cell inputs with the potential to expand and connect other junction boxes. The stainless steel NEMA Type 4X enclosure is optimal protection against harsh environments and abrasive materials. The JB4ES TuffSeal excitation trim junction box is ideal for use in tank and hopper scale applications.
