SURVIVOR PT-M Truck Scale

​Description

  • n-pit foundation

  • Ideal for limited access locations

  • Structural steel pipe lever system

  • Standard levers: 32.5 ton sectional rating

  • Capacities up to 400,000 lb

  • Standard widths from 10 to 14 ft

  • Standard profile 44.5 in

​

Options

  • Load cell stand

  • Steel deck

  • Pit angle coping

  • Deck rebar

  • Deck channel

  • Bumper plates

  • Foundation bolts

  • Manhole frames and covers

  • Conversion S-beam load cell(s)

  • Load cell mounting hardware

  • Indicator

  • Printer

  • Other peripheral equipment

Approvals

Some approval documents are available to view by clicking the icons below.

ntep_logo
updated_mc_logo
Warning

Rice Lake's Legendary Levertronic Truck Scale

​

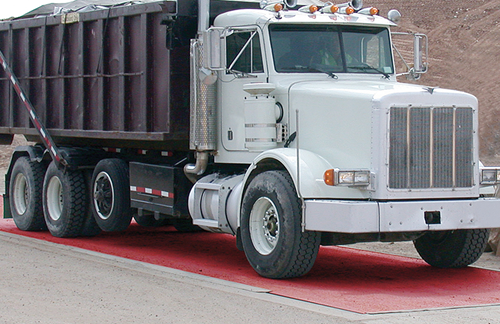

The SURVIVOR PT-M is a mechanical pipe-lever design of our pit-type PT model. The mechanical lever system is precision-built from heavy-duty structural steel to provide higher strength and less stress breaks than competitive components. These mechanical scales are designed with a load cell inserted into its lever system. These levertronic designs are better suited for areas susceptible to heavy moisture. The in-ground installation is ideal for locations with limited space or access. It may also be installed above ground for special site applications.

The PT-M is a cost-effective investment for a long-term, permanent installation. It provides the highest accuracy with the lowest maintenance costs. Available in steel and concrete decks and constructed with the same massive I-beams that support our PT and SR designs, the PT-M is a solid investment for many pit-type applications.
